Französischer Balkon 90 x 184 cm Anthrazit aus Stahl pulverbeschichtet

Balcony railings

Balcony railings are among the most heavily used parts of a building façade, as they are exposed to environmental influences, flower boxes and crowds of people. That is why balcony railings are designed to be particularly corrosion-resistant. They also feature an unobtrusive, linear design. The balcony railing measures 1840 x 900 mm in width and height and has 14 infill bars. It weighs approx. 8.5 kg and features a practical handrail with a diameter of approx. 38 mm x 1.5 mm. To ensure maximum safety for children, the width between the railing bars must not be less than 11 cm. Likewise, the infill bars should not be arranged horizontally, as this creates a ladder effect, which poses an additional hazard for small children!

Content:

1 x French balcony anthracite 184 x 90 cm

Technical data:

• Colour: anthracite
• Surface: matt and rough
• Material: powder-coated steel

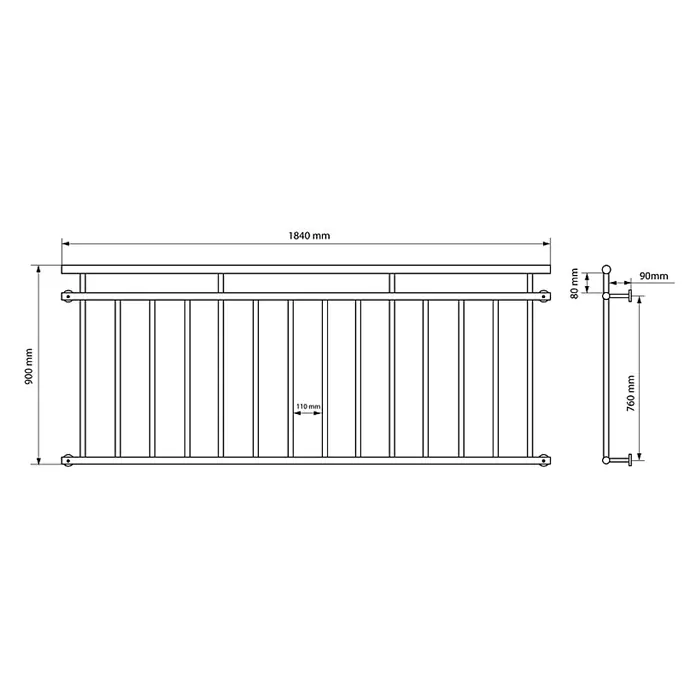

• Width x height: 1840 x 900 mm with 14 infill bars
• Distance between the designated drill holes:
• horizontal: approx. 1760 mm
• vertical: approx. 730 mm
• Ø drill hole: approx. 12 mm
• Max. window/door width: approx. 1700 mm
• Handrail: approx. Ø 38 mm x 1.5 mm
• Top/bottom frame: approx. Ø 32 mm
• Fill bars: approx. Ø 19 mm
• Weight: approx. 8.5 kg
